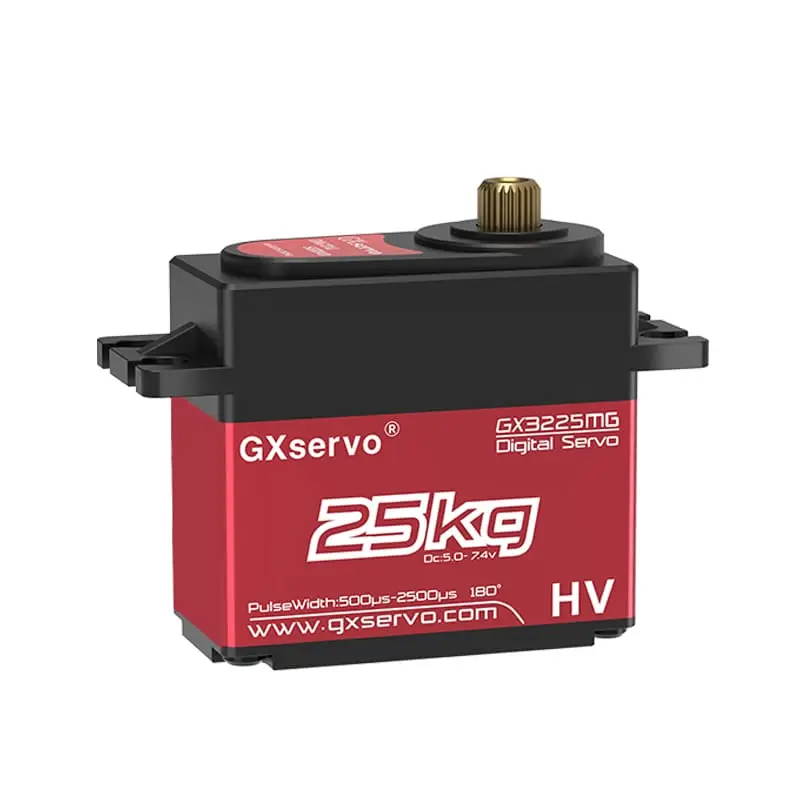

GXservo 25kg Servo PWM digital Servos:
Short body short version servo The shell is made of aviation aluminum alloy CNC precision manufacturing and plastic upper shell, steel precision gears, core motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
Specification：
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.21sec/60° |
| 7.4V ≤ 0.19sec/60° | |
| Max. Torque* | 6.0V ≥ 23kgf.cm |
| 7.4V ≥25kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 4us |
| Sizes | 40x20x40mm |
| Weight | 73 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy AL6061+Nylon Additive |
| Gear Set Material | Metal Gear |
| Motor Type | Core Motor |
Title:
25kg Digital Servo For 1/8 1/10 RC Toy Cars – High Torque Control with GSC Precision
Selling Points:
- 25kg High Torque Performance: Delivers strong, consistent power for steering and throttle systems.
- GSC (Gear Set Control) Technology: Optimized for smooth torque output and reduced backlash.
- Digital Circuitry: Quick response with accurate positioning, ideal for hobby-grade performance.
- All-Metal Gear Design: Withstands harsh terrain and high-impact driving.
- Plug-and-Play Fit: Standard 25T spline and JR connector for easy installation.
Product Advantages:
- High Strength Output: Perfect for 1/8 buggies, crawlers, and 1/10 drift or bashers.
- Responsive Signal Control: Great steering feedback even during aggressive turns.
- Long Lifespan: Precision-engineered internal structure with minimal wear over time.
- Water-Resistant Build: Suitable for dusty trails, damp courses, and splash zones.
- Enhanced Stability: Maintains accurate horn positioning under heavy load.
Application Fields:
- 1/10 Scale RC Crawler (TRX4, SCX10, etc.)
- 1/8 Buggy / Truggy / Drift Car
- High-Speed Touring Cars
- Off-Road Bashers
- DIY RC Vehicle Builds & RTR Upgrades
Comparison With Standard RTR Servos:
| Feature | 25kg Digital Servo (GSC) | Typical RTR Servo |
|---|---|---|
| Torque | 25kgf·cm | 10–15kgf·cm |
| Gear Material | Hardened Metal | Plastic or semi-metal |
| Responsiveness | Digital, fast signal input | Moderate analog response |
| GSC System | Included | Not available |
| Durability | High-grade for harsh use | Basic usage level |
Usage Instructions:
- Voltage Range: 4.8V–7.4V (7.4V recommended for full power).
- PWM Signal: 1520μs pulse width, 50–330Hz compatible.
- BEC Suggestion: 5–7A BEC module recommended for best results.
- Horn Centering: Power on servo before mounting horn for neutral alignment.
- Connector Type: JR 3-pin compatible with most receivers (Flysky, Futaba, etc.).
Quality & After-Sales Support:
- 100% Factory Tested: Each unit undergoes torque, precision, and temperature tests.
- Warranty: 12 months warranty under regular use conditions.
- OEM/ODM Options: Logo customization, cable length, color variations available.
- Documentation: Includes mounting guide, signal specs, and setup instructions.
