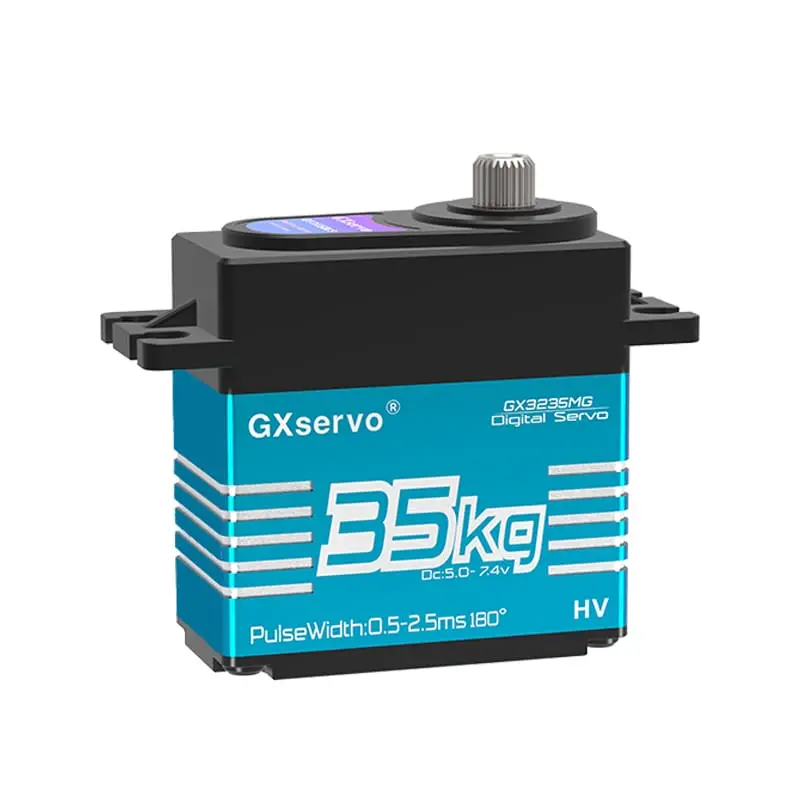

GXservo 35kg Servo PWM digital Servos:
Short body short version servo The shell is made of aviation aluminum alloy CNC precision manufacturing and plastic upper shell, steel precision gears, core motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
Specification：
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.21sec/60° |
| 7.4V ≤ 0.19sec/60° | |
| Max. Torque* | 6.0V ≥ 32kgf.cm |
| 7.4V ≥35kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 4us |
| Sizes | 40x20x40mm |
| Weight | 73 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy AL6061+Nylon Additive |
| Gear Set Material | Metal Gear |
| Motor Type | Core Motor |
### Product Title
**35kg High Torque Digital Servo for Short Course Crawler – GSC Optimized**
### Product Images & Videos
– **High-Resolution Images**: Showcase the servo from multiple angles, including close-ups of key components like gears and the motor. Display the servo installed in a short course crawler for context.
– **Video Demonstration**: Include a short video demonstrating the servo’s performance in a short course crawler, highlighting its torque, speed, and precision.
### Product Description
**Introduction**
– This 35kg digital servo is specifically engineered for short course crawlers, offering robust performance and precise control. It’s designed to enhance the capabilities of your RC vehicle, ensuring reliable operation in various terrains.
**Features**
– **High Torque**: Achieves a maximum torque of 35kg.cm at 7.4V, providing the power needed for demanding off-road conditions.
– **Fast Response**: Equipped with digital control technology, it has a no-load speed of 0.19 sec/60° at 7.4V, ensuring quick and accurate movements.
– **Durable Construction**: Features metal gears for strength and an aluminum alloy casing for lightweight durability and enhanced heat dissipation.
– **Water-Resistant**: With an IP54 rating, it’s protected against water splashes, making it suitable for outdoor use.
– **Programmable**: Supports USB programming for customizing parameters to suit your specific needs.
### Product Specifications
| Specification | Details |
|—————|———|
| **Operating Voltage** | 5-8.4V |
| **No-Load Speed** | 0.238sec/60° (42RPM) @6V, 0.192sec/60° (52RPM) @7.4V |
| **Stall Torque** | 28.8kg.cm/400.65oz.in @6V, 35.5kg.cm/439.86oz.in @7.4V |
| **Control Signal** | PWM |
| **Angle** | 180° (at 500→2500µsec) |
| **Casing Material** | PA+Aluminum |
| **Gear Material** | Steel |
| **Bearing Type** | Ball Bearing |
| **Output Shaft** | 25T/5.9mm |
### Application Scenarios
– **Short Course Crawlers**: Ideal for 1/10 scale short course crawlers, providing the necessary power and precision for climbing and navigating rough terrain.
– **Robots**: Suitable for robotic projects that require high torque and precise movement.
### Customer Reviews
– “This servo’s torque is impressive. My short course crawler’s performance has significantly improved, and the response is very quick.”
– “The durability of the metal gears and the waterproof feature make it perfect for outdoor use. Highly recommend it!”
### After-Sales Service
– **Warranty**: Enjoy a one-year warranty for quality assurance.
– **Technical Support**: Our dedicated support team is available to assist with any technical issues.
