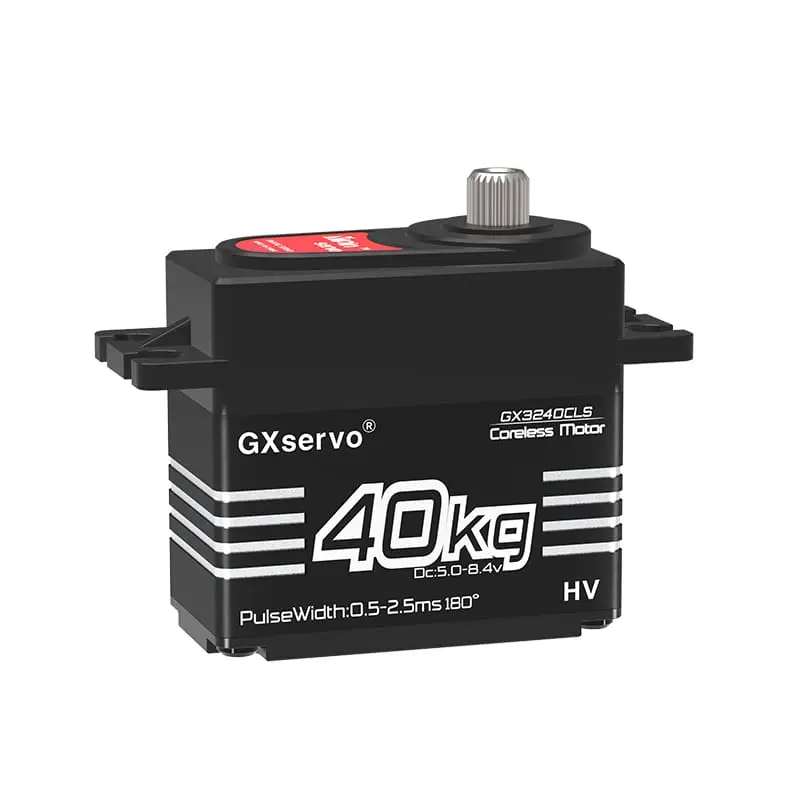

GXservo 40kg Servo PWM digital Servos:
Short body short version servo The shell is made of aviation aluminum alloy CNC precision manufacturing and plastic upper shell, steel precision gears, coreless motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
Specification：
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.15sec/60° |
| 7.4V ≤ 0.12sec/60° | |
| 8.4V ≤ 0.11sec/60° | |
| Max. Torque* | 6.0V ≥ 35kgf.cm |
| 7.4V ≥40kgf.cm | |
| 8.4V≥42kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 3us |
| Sizes | 40x20x40mm |
| Weight | 73 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy AL6061+Nylon Additive |
| Gear Set Material | Metal Gear |
| Motor Type | Coreless Motor |
### Product Title
**Industrial-Grade 40kg Coreless Servo For RC Crawler Cars**
### Product Images & Videos
– **High-Resolution Images**: Detailed images of the servo from various angles, including close-ups of the metal gears and the compact body。
– **Video Demonstration**: A short video showcasing the servo’s performance in an RC crawler car, highlighting its high torque and quick response。
### Product Description
**Introduction**
– Upgrade your RC crawler experience with this powerful 40kg coreless servo. Designed for industrial-grade durability and precision control, it’s the perfect addition to your RC vehicle。
**Features**
– **High Torque**: Achieves a maximum torque of 40kg.cm at 7.4V, ensuring strong and reliable control。
– **Fast Response**: Equipped with coreless motor technology, it offers a no-load speed of 0.12sec/60° at 7.4V。
– **Durable Construction**: Features a forged aluminum-nylon hybrid case and carbide-treated steel gears。
– **Water-Resistant**: With an IP54 rating, it’s protected against water splashes, making it suitable for outdoor use。
– **Programmable**: Supports USB programming for customizing parameters to suit your specific needs。
### Product Specifications
| Specification | Details |
|—————|———|
| **No Load Speed** | 0.15sec/60° (6.0V); 0.12sec/60° (7.4V); 0.11sec/60° (8.4V) |
| **Max. Torque** | 35kg.cm (6.0V); 40kg.cm (7.4V); 42kg.cm (8.4V) |
| **Pulse Width Range** | 500-2500us |
| **Dead Band Width** | ≤ 3us |
| **Sizes** | 40x20x40mm |
| **Weight** | 73g (No Accessory) |
| **Case Material** | Aluminum Alloy AL6061+Nylon Additive |
| **Gear Set Material** | Metal Gear |
| **Motor Type** | Coreless Motor |
| **Waterproof Rating** | IP54 |
### Application Scenarios
– **RC Crawler Cars**: Ideal for 1/10 to 1/8 scale RC crawler cars, providing the necessary power and precision for high-speed racing and off-road adventures。
– **Robots**: Suitable for robotic projects that require high torque and precise movement。
### Customer Reviews
– “This servo’s torque is impressive. My RC crawler’s performance has significantly improved, and the response is very quick” 。
– “The durability of the metal gears and the waterproof feature make it perfect for outdoor use. Highly recommend it!” 。
### After-Sales Service
– **Warranty**: Enjoy a one-year warranty for quality assurance。
– **Technical Support**: Our dedicated support team is available to assist with any technical issues。
### Purchase Button
– **Add to Cart**: A prominent and easy-to-find purchase button to facilitate quick ordering。
