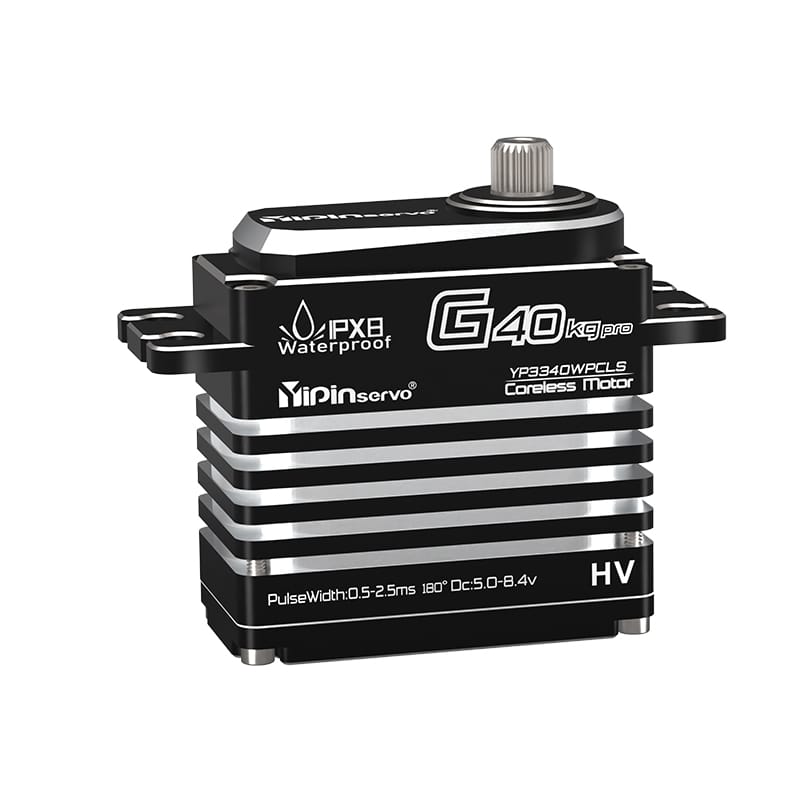

YIPINservo G40KGpro Servo PWM digital Servos:
Shell all aviation aluminum alloy CNC precision manufacturing, steel precision gears and patented helical gear design, hollow coreless motor, high sensitivity, compact body, high-voltage circuit, professional IP68 high-intensity waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to adjust the parameter), support for free to adjust the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
Specification：
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.13sec/60° |
| 7.4V ≤ 0.11sec/60° | |
| 8.4V ≤ 0.1sec/60° | |
| Max. Torque* | 6.0V ≥ 30kgf.cm |
| 7.4V ≥35kgf.cm | |
| 8.4V ≥40kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 3us |
| Sizes | 40.5x21x41.7mm |
| Weight | 100.8 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Coreless Motor |
| Waterproof Rating | IP 68 |
Title:
40KG Waterproof Coreless Servo for Ship Model with GSC Precision Control – Heavy Duty Marine Servo
Selling Points:
- High Torque Output: Delivers a massive 40KG torque for extreme control in marine environments.
- Waterproof Design: Engineered with full IP67 waterproofing, ideal for ship models and wet conditions.
- Coreless Motor Technology: Offers faster response, lower inertia, and smoother operation than traditional motors.
- GSC System (Gear Set Control): Ensures precise gear positioning, minimal backlash, and superior responsiveness.
- Wide Voltage Compatibility: Operates seamlessly between 6V to 8.4V, supporting various power systems.
Product Advantages:
- Ultra-Durable Materials: CNC aluminum alloy housing for heat dissipation and corrosion resistance.
- Stable & Quiet Operation: Coreless architecture paired with high-quality gears ensures silent, stable movement.
- Programmable Control: Compatible with most servo programmers to fine-tune performance.
- Compact But Powerful: Lightweight form factor with powerful output – ideal for space-constrained installations.
- GSC-Enhanced Gear System: Boosts servo life and consistency, especially under load and repetitive motions.
Application Fields:
- RC Ship Models (Sailing Boats, Warships, Tugboats)
- Underwater Robots and Submersibles
- Marine-Grade Industrial Equipment
- DIY Robotics Needing Waterproof High-Torque Servos
- RC Cars and Crawlers Requiring Extreme Torque and Water Protection
Advantages Compared to Other Servos:
| Feature | This Servo (With GSC) | Conventional Servos |
|---|---|---|
| Torque | 40KG | 20-25KG |
| Waterproof Rating | IP67 | IP54 or None |
| Motor Type | Coreless | Brushed / Basic Core |
| Gear System | GSC Precision Gears | Standard Plastic or Metal |
| Voltage Compatibility | 6.0V – 8.4V | 4.8V – 6.0V |
| Heat Dissipation | CNC Aluminum Casing | Plastic Housing |
| Response Time | High (Coreless Motor) | Moderate to Low |
Usage Instructions:
- Power Supply: Ensure input voltage is between 6.0V and 8.4V.
- Wiring: Connect to servo receiver channel, ensure polarity.
- Mounting: Secure the servo using anti-vibration mounts for marine use.
- Calibration: Use a servo tester or controller to center and test rotation range.
- Waterproof Check: Always inspect seals and casing before submerging.
Quality & After-Sales Guarantee:
- Premium Build Standards: Each unit undergoes strict QC inspection for waterproofing, torque output, and stability.
- Warranty: Backed by a 12-month warranty covering manufacturing defects.
- Customer Support: Dedicated tech support and guidance on GSC configuration or marine applications.
- Spare Parts & Upgrades: Optional replacement gears and GSC modules available.
