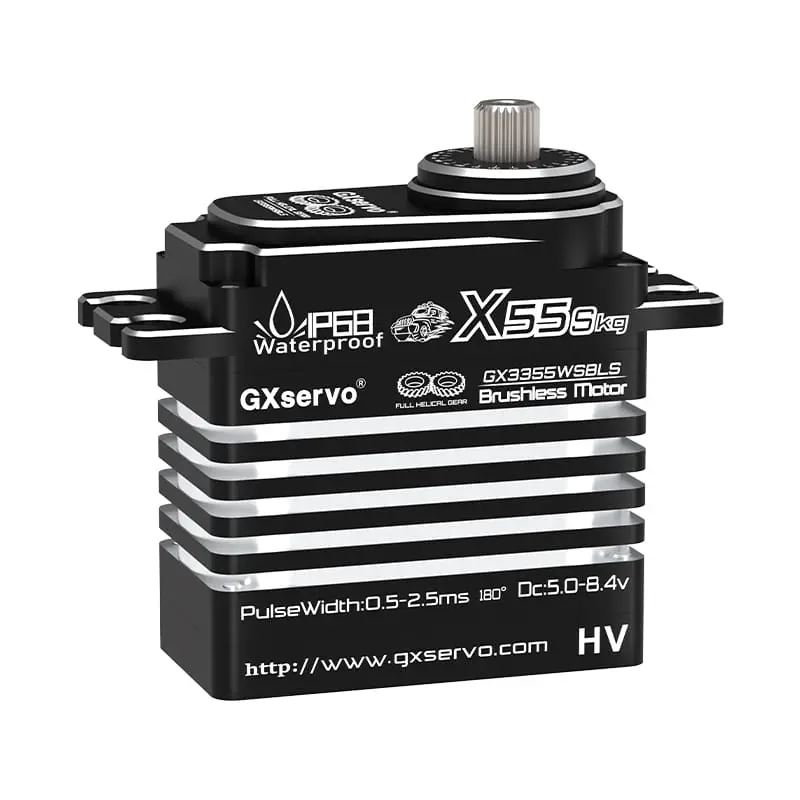

GXservo X55SKGpro Servo PWM digital Servos:
Shell all aviation aluminum alloy CNC precision manufacturing, steel precision gears and patented helical gear design, hollow Brushless motor, high sensitivity, compact body, high-voltage circuit, professional IP68 high-intensity waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to adjust the parameter), support for free to adjust the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.095sec/60° |
| 7.4V ≤ 0.08sec/60° | |
| 8.4V ≤ 0.072sec/60° | |
| Max. Torque* | 6.0V ≥ 40kgf.cm |
| 7.4V ≥52kgf.cm | |
| 8.4V ≥ 57kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 40.5x21x50.15mm |
| Weight | 100.8 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
| Waterproof Rating | IP 68 |
# **55kg Waterproof Brushless Servo – IP68 High-Performance Servo for Aquatic Drones & Industrial Automation**
## **🌊🤖 Dual-Application Marine & Industrial Servo**
This **55kg ultra-torque waterproof servo** delivers **IP68-certified protection** and **brushless motor precision**, engineered for both aquatic and industrial automation applications:
– **🚁 Aquatic Drones/UAVs** – Precise water surface maneuverability
– **🤖 Underwater ROVs** – Depth-rated performance (2m/72hr)
– **🏭 Industrial Automation** – Heavy-duty robotic actuation
– **💧 Water Treatment Systems** – Corrosion-resistant valve control
– **🔬 Marine Research Equipment** – Scientific-grade positioning
—
## **⚡ 6 Key Performance Advantages**
### **1. Industrial-Grade 55kgf.cm Torque**
– **57kgf.cm @8.4V** for heavy loads
– **50kgf.cm @7.4V** consistent performance
– **Brushless motor** maintains torque in wet conditions
### **2. True IP68 Waterproofing**
– **Fully submersible** design
– **Triple-sealed shaft** with marine grease
– **Saltwater-resistant** aluminum alloy housing
### **3. Ultra-Fast Response**
– **0.072sec/60° @8.4V** rapid adjustment
– **≤2μs deadband** for precision control
– **Adaptive damping** algorithms
### **4. Dual-Environment Design**
– **100.8g lightweight** construction
– **Helical metal gears** for smooth operation
– **Vibration-resistant** mounting
### **5. Smart Control Features**
– **500-2500μs programmable range**
– **Auto-position memory**
– **Overload protection circuit**
### **6. Extreme Condition Reliability**
– **-10°C to 70°C operating range**
– **200-hour salt spray tested**
– **Shock/vibration resistant**
—
## **🛠️ Professional Installation Guide**
### **🔌 Marine/Industrial Wiring**
1. Use **IP68-rated connectors**
2. Apply **dielectric grease** to contacts
3. Secure with **stainless steel clamps**
### **⚙️ System Integration**
– **Optimal voltage**: 7.4V-8.4V
– **Neutral position**: 1500μs
– **Full range**: 500-2500μs adjustable
### **🧰 Maintenance Protocol**
– **Monthly seal inspections**
– **Quarterly gear lubrication**
– **Biannual full service**
—
## **🛡️ Industrial-Grade Assurance**
– **IP68 certified** with test reports
– **50,000 cycle endurance tested**
– **3-year waterproof warranty**
– **MIL-STD-810G vibration tested**
—
## **🚀 Why Professionals Choose This Servo**
✔ **Dual marine/industrial use**
✔ **55kg professional torque**
✔ **True IP68 waterproofing**
✔ **Proven in commercial applications**
—
## **📦 Complete Professional Package**
– (1) IP68 brushless servo
– (2) Application-specific mounts
– (1) Waterproof grease kit
– Installation manual
**🔍 SEO Keywords:**
Aquatic Drone Servo | IP68 Brushless Servo | 55kg Torque Servo | Underwater Servo Motor | Industrial Waterproof Servo | ROV Servo | Automation Equipment Servo | Marine Robotics | Heavy Duty Servo | Waterproof Actuator
**🖼️ Recommended Visuals:**
1. Servo operating aquatic drone
2. Underwater pressure test
3. Torque demonstration
4. Cross-section of sealing system
**💡 Pro Tip:** For drone applications, pair with our **Aquatic Servo Controller** (ASC-55) for optimized water surface handling!
