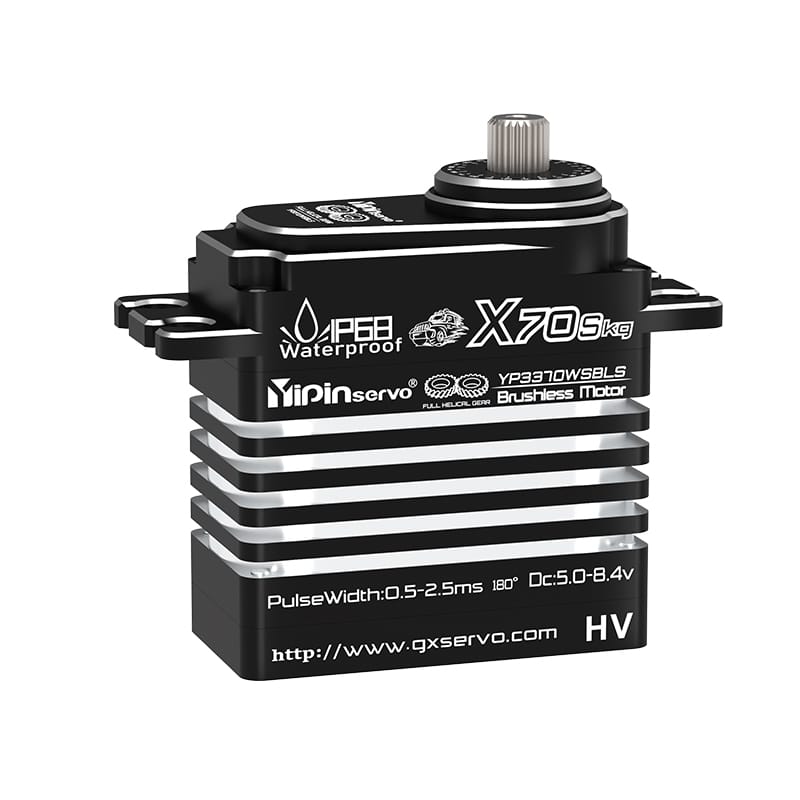

GXservo X70skgpro Servo PWM digital Servos:
Shell all aviation aluminum alloy CNC precision manufacturing, steel precision gears and patented helical gear design, hollow Brushless motor, high sensitivity, compact body, high-voltage circuit, professional IP68 high-intensity waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to adjust the parameter), support for free to adjust the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.10sec/60° |
| 7.4V ≤ 0.085sec/60° | |
| 8.4V ≤ 0.08sec/60° | |
| Max. Torque* | 6.0V ≥ 53kgf.cm |
| 7.4V ≥63kgf.cm | |
| 8.4V ≥ 70kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 40.5x21x50.15mm |
| Weight | 100.8 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
| Waterproof Rating | IP 68 |
Title:
70KG Industrial Waterproof Brushless Servo for Submarines & ROVs with GSC Precision Control
Selling Points:
- 70KG Ultra-High Torque Output: Designed for demanding underwater propulsion, manipulation, and positioning systems.
- Brushless Motor Technology: Delivers long-lasting, smooth, and efficient operation under continuous load.
- IP68 Full Submersion Rating: Engineered for deep-water missions with enhanced sealing and pressure resistance.
- GSC Gear Set Control System: Offers stable, backlash-free motion for precision in subsea environments.
- Marine-Grade Construction: Corrosion-resistant CNC aluminum body with reinforced shaft for extreme applications.
Product Advantages:
- Reliable Under Pressure: Maintains performance even under significant water pressure at depth.
- High Torque Stability: Supports robotic arm joints, camera PTZ systems, and thrust vectoring modules.
- Low Noise, Low Vibration: Ideal for marine surveys, data collection, and silent movement.
- Advanced Heat Dissipation: Cooled through casing design and optimized for low internal resistance.
- Wide System Compatibility: Supports integration with underwater control systems via PWM, SBUS, or CAN interface.
Application Fields:
- Submarine Models (Manned or Autonomous)
- ROVs (Remotely Operated Vehicles)
- Underwater Manipulators & Camera Systems
- Subsea Valves & Mechanical Linkages
- Offshore Survey Equipment
- Industrial Deep-Sea Robotics
Advantages Compared to Other Servos:
| Feature | This Servo (With GSC) | Standard Underwater Servos |
|---|---|---|
| Torque | 70KG | 30–50KG |
| Motor Type | Brushless | Brushed / Lower-Torque Coreless |
| Gear Control | GSC Enhanced | Standard Gear Stack |
| Waterproof Level | IP68 Submersible | IP66 or Temporary Submersion |
| Material | CNC Aluminum + Marine Seals | Plastic/Hybrid |
| Pressure Resistance | Excellent | Moderate |
| Precision Motion | Ultra-Stable | Basic |
Usage Instructions:
- Operating Voltage: 7.4V–8.4V; regulated BEC recommended for marine conditions.
- Signal Input: Standard PWM; supports SBUS or CAN with adapter module.
- Installation Notes: Use stainless brackets and sealed pass-throughs for wiring; avoid sharp cable bends.
- Deployment Tip: Pre-test motion in pressure tank or shallow water before deep-sea use.
- Maintenance: Rinse in freshwater post-deployment; inspect O-rings and shafts after 100 hours of operation.
Quality & After-Sales Guarantee:
- Subsea Field Tested: Pressure, temperature, and corrosion resistance verified under real-use conditions.
- 12-Month Warranty: Covers motor wear, gear performance, and seal failure.
- Integration Support: Professional team provides guidance for ROV and submarine integration.
- Optional Add-ons: Depth-rated wiring kits, mounting systems, and advanced signal converters available.
