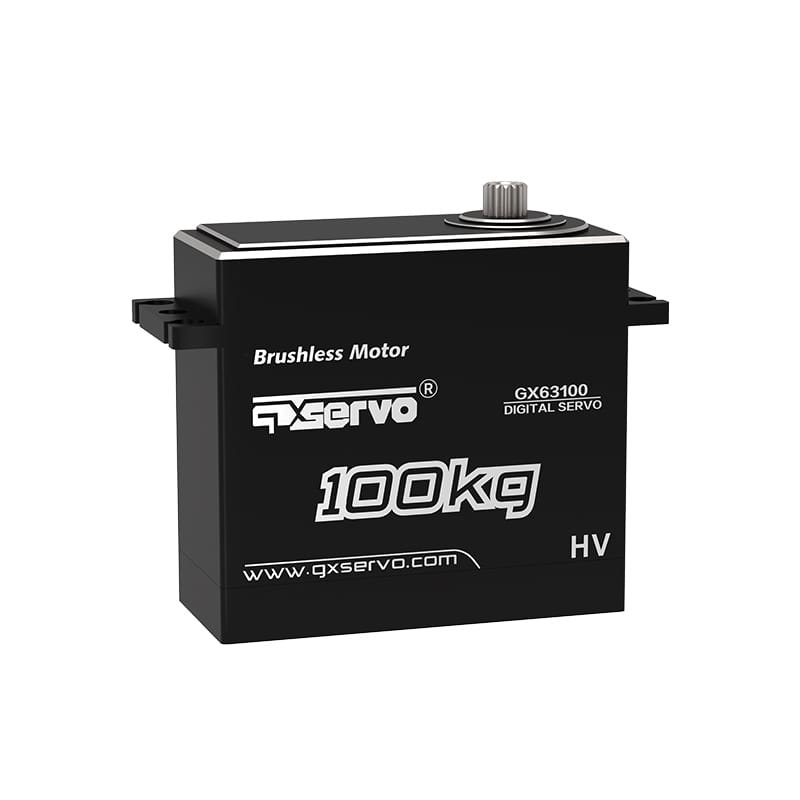

GXservo 100kg Servo RS485 Protocol
Welcome to my official website! We are pleased to have you visit our shop and offer you a wide range of quality products. Your satisfaction is our top priority and we are committed to providing quality services and products to meet your needs. Please feel free to contact us with any questions
| Item | Specification | Value |
|---|---|---|
| No Load Current | 24.0V | ≤400 mA at 24.0V |
| No Load Speed | 24.0V | ≤0.20 Sec./60° at 24.0V |
| Stall Torque | 24.0V | ≥100 Kgf.cm at 24.0V |
| Rated Torque | 24.0V | 30kgf.cm at 24.0V |
| Communication Interface | UART | |
| Dead Band Width | N/A | |
| Sizes | 65.8x30x61.5mm | |
| Weight | 286.8g(No Including Accessory) | |
| Case Material | Aluminum Alloy | |
| Gear Set Material | Metal Gear | |
| Motor Type | Brushless Motor | |
Title:
100KG High Precision Brushless Servo – GSC-Controlled Accuracy for Industrial Equipment
Selling Points:
- 100KG Rated Torque: Designed for continuous high-load operation in demanding industrial automation tasks.
- GSC (Gear Set Control) Precision Technology: Delivers consistent micro-level feedback and stable motion output.
- Brushless Motor Core: Ensures long life, quiet operation, and high thermal efficiency.
- Industrial-Level Protection: IP67-rated casing resists oil, dust, water, and vibration.
- Wide Voltage Input: Supports 12V–24V DC, ideal for integration into automated systems.
Product Advantages:
- High Torque with High Precision: Perfect balance of strength and control for motion-critical applications.
- Stable Output under Load: Maintains torque with minimal temperature rise even during 24/7 operations.
- Multi-Protocol Compatible: Supports PWM, RS485, CAN, and other industrial control signals.
- Maintenance-Free Design: Sealed housing and brushless architecture for low downtime and long service life.
- Compact Yet Powerful: Designed for limited space environments without compromising torque.
Application Fields:
- Industrial Robot Arms & End Effectors
- CNC and Smart Manufacturing Systems
- Automated Guided Vehicles (AGVs)
- High-Load Rotating Platforms
- Precision Linear Actuators
- Custom Heavy Machinery
- Lifting & Sorting Systems
- Surveillance & Defense Mechanisms
Advantages Compared to Traditional Industrial Servos:
| Feature | 100KG GSC Brushless Servo | Conventional Servo Motor |
|---|---|---|
| Torque Range | 100KG | 40–70KG |
| Gear Feedback Precision | GSC with Encoder (±0.01°) | Basic or Analog Feedback |
| IP Rating | IP67 | IP54–IP65 |
| Voltage Compatibility | 12V–24V | Typically 12V |
| Noise Level | Ultra-low (Silent Brushless Drive) | Moderate |
| Duty Cycle | 100% Continuous | 60% or lower |
Usage Instructions:
- Voltage Input: Use 12–24V DC regulated power supply (ideal at 16.8V for max efficiency).
- Signal Types: Compatible with PWM (1000–2000μs), RS485, UART, or CAN based on model version.
- Mounting: Ensure flat base and tight bolt fixation to minimize vibration-induced deviation.
- Wiring Tip: Use industrial shielded cabling when operating in EMI-heavy environments.
- Thermal Monitoring: Optional internal temp reporting available via UART/CAN feedback.
Quality & After-Sales Guarantee:
- Reliability Assurance: Tested under 1000h continuous load simulation and vibration cycles.
- 12-Month Global Warranty: Full coverage on motor core, gear system, and signal board.
- Technical Support: Wiring schematics, firmware upgrade support, integration SDKs available.
- OEM Capabilities: Protocol matching, flange adjustment, signal port customization, and branding offered on request.
