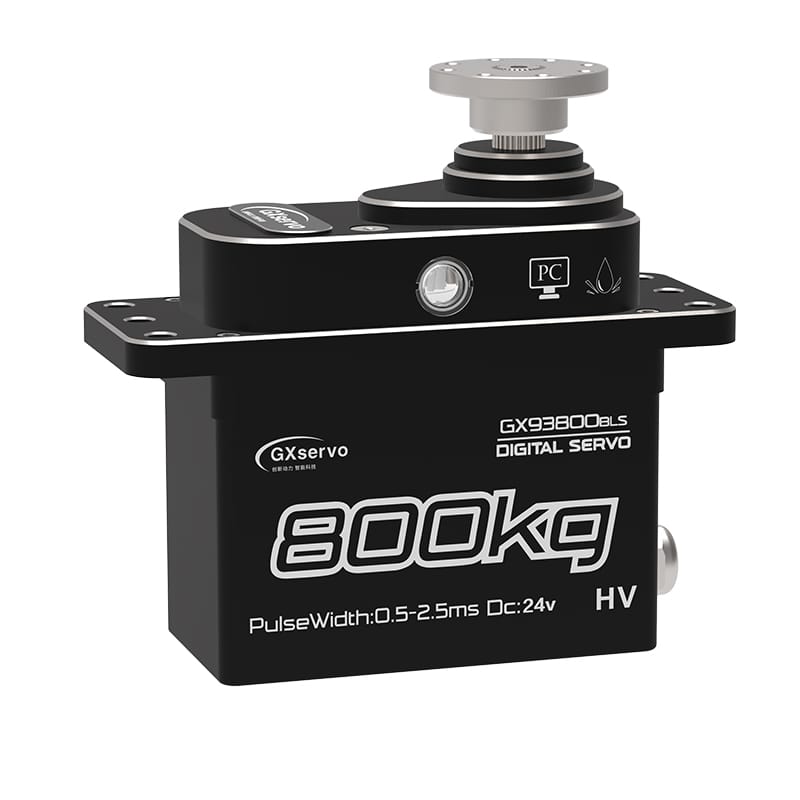

GXservo 800kg Servo PWM digital Servos:
This 800KG high torque servo is developed for high voltage applications and is mainly used in the industrial automation industry range. Built-in high efficiency coreless motors optimised for 20-24V operation and heavy duty metal gear shafts etc. Advanced chip motherboard design for your automated production equipment.
| Item | Specification |
|---|---|
|
No Load Speed
|
12.0V ≤0.45sec/60° |
| 24.0V ≤0.37sec/60° | |
| Max.Torque*
|
12.0V ≥ 600kgf.cm |
| 24.0V ≥800kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2 us |
| Sizes | 132x55x100mm |
| Weight | 1060g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
Title:
800KG High Torque Brushless Servo – GSC-Controlled Industrial Servo for Construction Machinery
Selling Points:
- 800KG Heavy-Duty Torque Output: Specifically designed for construction machinery, hydraulic controllers, robotic arms, and excavation automation.
- Brushless Motor System: Delivers long operational life, high torque stability, and low maintenance requirements.
- GSC (Gear Set Control) Technology: Ensures smooth motion under shock, vibration, and load fluctuation — ideal for uneven terrain work.
- IP67 Fully Waterproof Design: Built to perform in mud, dust, water, and extreme weather environments.
- Industrial-Ready Signal Support: Compatible with PWM, CANBus, and PPM — easy to integrate with modern control systems.
Product Advantages:
- Built for Harsh Construction Sites: Reinforced CNC aluminum housing, anti-corrosion coating, and sealed gear system.
- High Voltage Compatibility (16V–24V): Designed to operate with industrial power buses and vehicle systems.
- Efficient Thermal Management: Built-in heat-dissipating structure and vibration-resistant core keep performance steady in high-use applications.
- Zero Drift Precision Holding: Maintains stable position even under sudden load changes and harsh terrain.
- Rugged Gear Design: Steel-cut gears rated for >10,000 hours under heavy-duty use.
Application Fields:
- Excavator & Bulldozer Control Systems
- Automated Hydraulic Valves
- Drilling Platforms & Lifting Equipment
- AGV and UGV in Construction Sites
- Rock Handling or Heavy Conveyor Positioning
- Large Crane Rotators / Actuators
Advantages Compared to Standard Servos:
| Feature | 800KG GSC Industrial Servo | Standard Industrial Servo |
|---|---|---|
| Torque Output | 800KG | 300–500KG |
| Voltage Range | 16–24V | 6–12V |
| Gear Structure | GSC-Controlled Steel Drive | Standard Steel |
| Environmental Protection | IP67 Waterproof, Dustproof | IP54 / Semi-sealed |
| Housing | Reinforced CNC with Coating | Standard Cast |
| Shock Resistance | High-Vibration & Load Proof | Low to Moderate |
Usage Instructions:
- Power Input: 16V–24V DC (ideal performance at 24V).
- Signal Modes: PWM (1000–2000μs), CANBus, and PPM supported.
- Installation Notes: Ensure reinforced mounting; minimum torque of 25Nm recommended for securing brackets.
- Control Interface: Works with industrial PLCs, MCUs, and automation platforms.
- Maintenance: Inspect gasket seal every 1000 hours, clean casing with compressed air after heavy exposure.
Quality & After-Sales Guarantee:
- Heavy-Use Reliability Testing: Certified for 24/7 operation, high-vibration cycles, and dust intrusion resistance.
- 24-Month Warranty: Covers GSC gear wear, water ingress, signal fault, and motor failure.
- Complete Integration Support: CAD files, signal protocols, and PLC templates provided.
- OEM Customization Available: Mounting sizes, motor curve tuning, or output shaft design.
