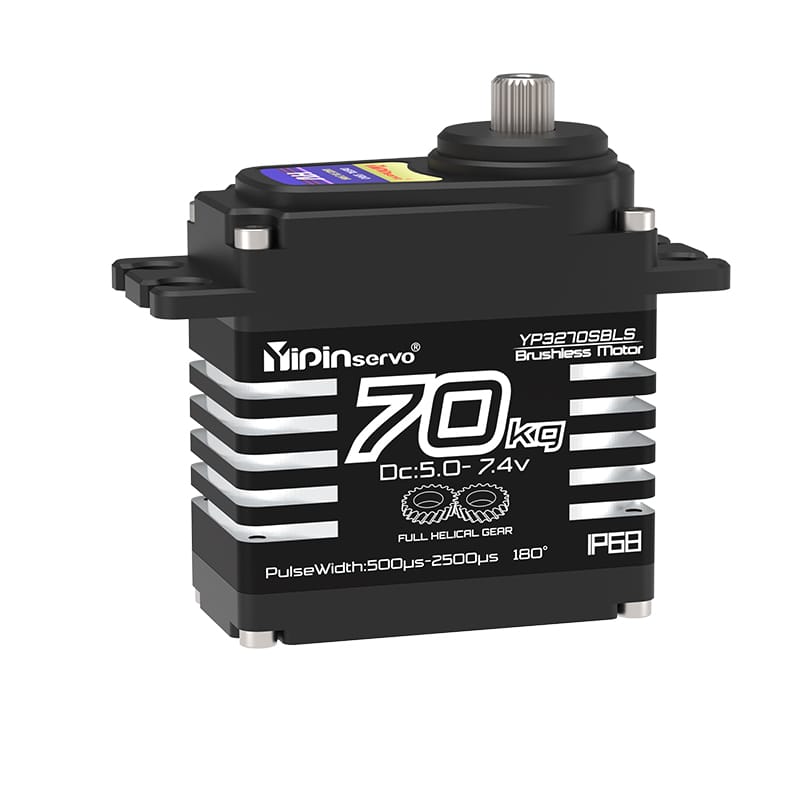

YIPINservo 70kg Servo PWM digital Servos:
YIPINservo 70KG Servo PWM Digital Servo The shell is made of aviation aluminum alloy CNC precision manufacturing and plastic upper shell, steel precision gears and patented helical gear design, iron core motor, high sensitivity, compact body, high-voltage circuit, professional IP68 high-intensity waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to adjust the parameter), support for free to adjust the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.12sec/60° |
| 7.4V ≤ 0.1sec/60° | |
| 8.4V ≤ 0.09sec/60° | |
| Max. Torque* | 6.0V ≥55kgf.cm |
| 7.4V ≥63kgf.cm | |
| 8.4V ≥70kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 40.5x21x41.7mm |
| Weight | 90 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
| Waterproof Rating | IP 68 |

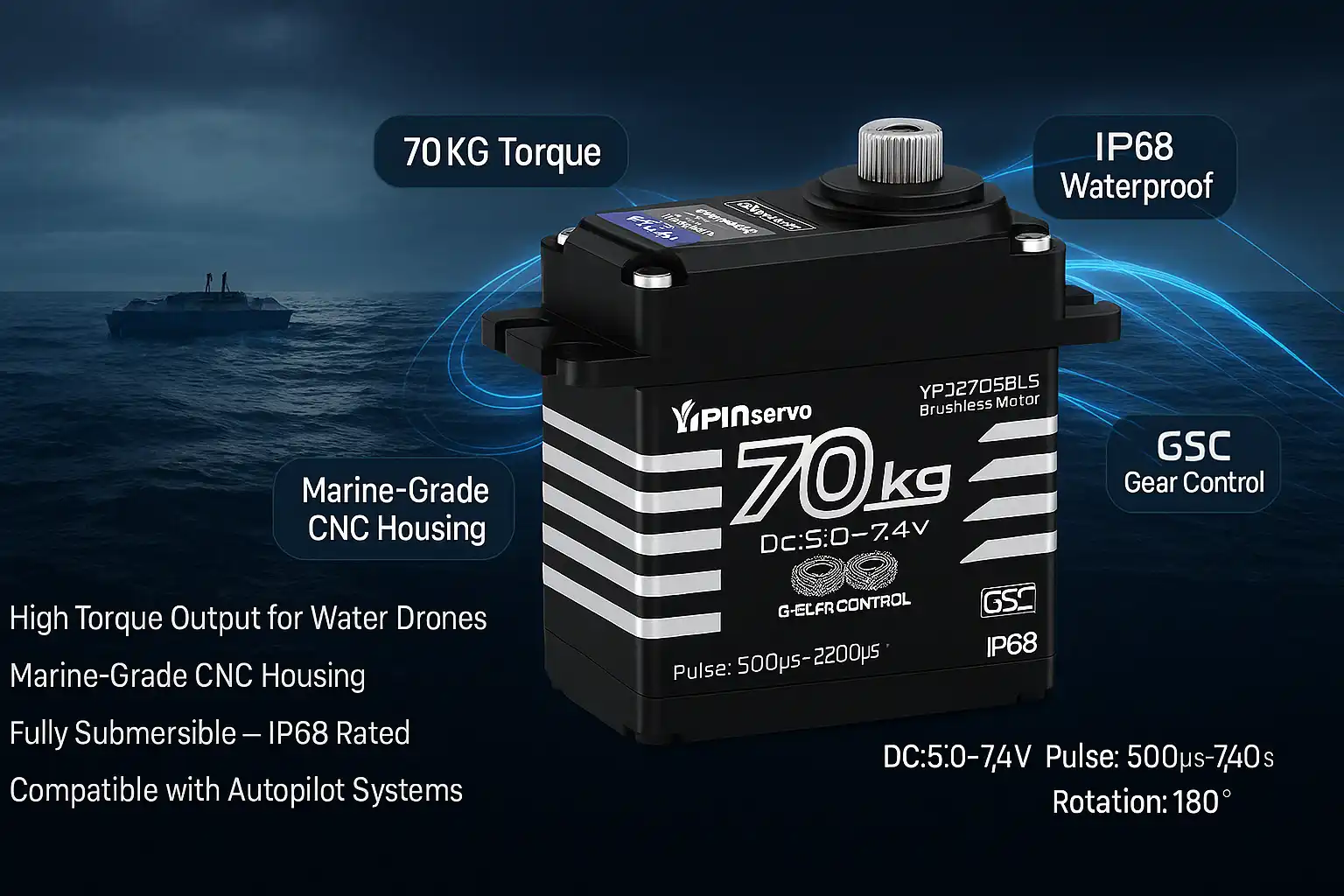

70kg Waterproof Brushless Servo for Water Drone
Key Selling Points:
- High Torque Performance: With a powerful 70kg torque rating, this servo offers exceptional performance for large water drones, capable of handling heavy control surfaces and demanding applications.
- Waterproof Design: Engineered to withstand the harshest aquatic environments, this servo is fully waterproof with an IP67 rating, making it ideal for both freshwater and saltwater conditions.
- Brushless Motor Technology: Equipped with a brushless motor, the servo delivers smoother operation, longer lifespan, and greater efficiency compared to traditional brushed motors, perfect for long-duration missions.
- Durable and Corrosion-Resistant: Constructed with corrosion-resistant materials, this servo is built to endure continuous exposure to water and other harsh elements.
- Precision Control: Provides high precision and fast response, ensuring optimal handling of your water drone’s navigation and control surfaces.
Advantages:
- Superior Efficiency and Reliability: The brushless motor ensures minimal wear, reduced maintenance, and improved efficiency, especially during extended underwater or water surface operations.
- Increased Longevity: The servo’s design allows it to function seamlessly in various weather conditions, including high humidity and saltwater exposure, greatly extending its lifespan compared to non-waterproof servos.
- Enhanced Control: Ideal for controlling heavy-duty mechanisms such as rudders or lifting surfaces, the 70kg torque rating ensures strong, reliable movement even under challenging conditions.
- Optimal for Large Drones: Perfectly suited for large water drones used in scientific research, aquatic exploration, or commercial applications, where heavy and precise control is required.
Applications:
- Marine Drones: Designed for use in water drones for research, exploration, and underwater surveying, where precision and durability are crucial.
- Aquatic Robotics: Ideal for robotic systems used in underwater construction, marine life observation, and monitoring submerged assets.
- Water Sports and Rescue Drones: Can be used in water sports drones or search and rescue operations, offering the strength and durability needed to operate effectively in tough environments.
- Surveillance and Environmental Monitoring: A go-to solution for drones used in surveillance or monitoring marine ecosystems and pollution levels in both fresh and saltwater bodies.
Comparison with Other Products:
- Brushless vs. Brushed Motors: Unlike brushed servos, our brushless design minimizes wear and tear, offering longer operational life and smoother performance with better heat dissipation. This is essential for continuous operation in water without performance degradation.
- Waterproof vs. Non-Waterproof: Non-waterproof servos cannot withstand exposure to water, which can lead to short circuits, rust, and malfunction. Our IP67-rated waterproof design ensures optimal performance even under submersion, providing peace of mind for marine drone users.
- Torque Comparison: With a 70kg torque rating, this servo outperforms many other standard servos in the market, which may only handle up to 30-50kg of torque. This high torque is essential for large water drones and demanding tasks.
Instructions for Use:
- Mounting: Secure the servo to your water drone’s frame, ensuring proper alignment with control surfaces like rudders, ailerons, or wings.
- Power Supply: Connect the servo to the drone’s power system, ensuring the correct voltage (typically 7.4V or 12V) is supplied.
- Calibration: Follow the manufacturer’s instructions to calibrate the servo with the flight controller to ensure accurate control and movement.
- Maintenance: Regularly inspect the servo for any signs of damage or corrosion. Clean and rinse the servo after each use, especially if used in saltwater environments, to maintain optimal performance.
Quality and After-Sales Service:
- Premium Quality: Our 70kg waterproof brushless servo is built using high-quality, corrosion-resistant materials, and undergoes rigorous testing to ensure reliability and durability in marine environments.
- Warranty: The servo comes with a comprehensive 2-year warranty, covering manufacturing defects and issues arising from normal usage.
- Customer Support: Our dedicated support team is available for troubleshooting, installation guidance, and product inquiries. We offer fast response times to ensure your drone’s systems are always operational.
