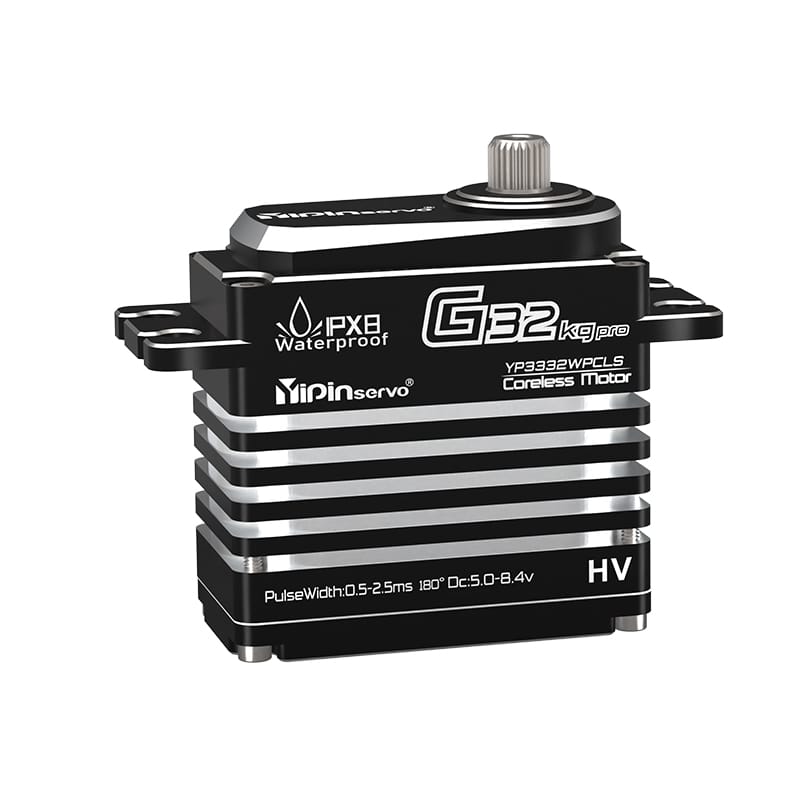

YIPINservo G32KGpro Servo PWM digital Servos:
Shell all aviation aluminum alloy CNC precision manufacturing, steel precision gears and patented helical gear design, hollow coreless motor, high sensitivity, compact body, high-voltage circuit, professional IP68 high-intensity waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to adjust the parameter), support for free to adjust the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.13sec/60° |
| 7.4V ≤ 0.11sec/60° | |
| 8.4V ≤ 0.1sec/60° | |
| Max. Torque* | 6.0V ≥ 25kgf.cm |
| 7.4V ≥28kgf.cm | |
| 8.4V ≥ 32kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 3us |
| Sizes | 40.5x21x41.7mm |
| Weight | 100.8 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Coreless Motor |
| Waterproof Rating | IP 68 |
Title:
32KG Waterproof Coreless Servo for Ship Models with GSC Precision Gear System
Selling Points:
- 32KG High Torque Coreless Motor: Engineered for precise rudder, sail, and propulsion control in model ships.
- IP67 Waterproof Protection: Fully sealed for freshwater and light saltwater use.
- Responsive Coreless Design: Fast signal response and smooth operation for real-time control on the water.
- GSC Gear Set Control System: Minimizes backlash and improves steering precision under wave resistance.
- Compact and Lightweight: Easily fits into various hull layouts without sacrificing torque.
Product Advantages:
- Reliable in Wet Environments: Designed to perform in damp and splash-prone conditions with waterproof cable seal.
- Stable Maneuvering: Perfect for smooth rudder and sail adjustments, even under windy or wave conditions.
- Heat-Resistant & Efficient: Low power draw and minimal heat buildup during continuous sailing.
- Marine-Grade Build Quality: CNC aluminum housing resists corrosion and mechanical stress.
- Plug & Play Compatibility: Works seamlessly with standard ship model receivers and controllers.
Application Fields:
- RC Ship Rudder and Propeller Control
- RC Sailboats – Main Sail and Jib Control
- Scale Warships, Yachts, and Tugboats
- Oceanographic Model Platforms
- Aquatic Robotics & Naval Training Simulators
Advantages Compared to Other Servos:
| Feature | This Servo (With GSC) | Traditional RC Boat Servos |
|---|---|---|
| Torque | 32KG | 15–25KG |
| Waterproof Rating | IP67 | IP54 or Splashproof |
| Gear Tech | GSC Stabilization | Standard Gear Set |
| Motor Type | Coreless | Brushed / Basic Coreless |
| Material | CNC Aluminum Alloy | Plastic or Hybrid |
| Marine Fit | Optimized for Boats | General-Purpose Fit |
| Stability in Current | Excellent | Moderate |
Usage Instructions:
- Voltage Range: Operates between 6.0V–8.4V for optimal torque and speed.
- Connection: Standard 3-pin PWM signal; use waterproof receiver box for marine setup.
- Mounting Tips: Position away from hull leaks; use rubber grommets for shock absorption.
- Pre-Sailing Calibration: Test endpoints and center before launching.
- Post-Use Maintenance: Rinse with fresh water after salt exposure; dry thoroughly.
Quality & After-Sales Guarantee:
- Marine-Grade QC Testing: Each unit tested under wet conditions and load for gear stability and waterproofing.
- Warranty: 12-month coverage for motor function, waterproof integrity, and gear wear.
- Customer Support: Dedicated assistance for ship model servo layout, sail system setup, and calibration.
- Upgrade Options: Optional GSC gear replacements, extended cables, and stainless mounting kits available.
