GXservo 100kg Servo PWM digital Servos:
High torque digital servo shell using aviation aluminum alloy CNC precision manufacturing, aluminum CNC shell metal gears large high torque steel precision gears, brushless motor, high sensitivity, compact body, high voltage circuitry, waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to regulate the parameters), support for free to adjust the pulse width angle.Used in 1/6 of the remote control toy cars, model airplanes, model ships, robotics industry.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ ≤0.16sec/60° |
| 7.4V ≤ ≤0.14sec/60° | |
| 8.4V ≤ ≤0.13sec/60° | |
| Max. Torque* | 6.0V ≥ ≥≥ 92kgf.cm |
| 7.4V ≥≥100kgf.cm | |
| 8.4V ≥ 110kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2 us |
| Sizes | 60x30x53.65mm |
| Weight | 210g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |

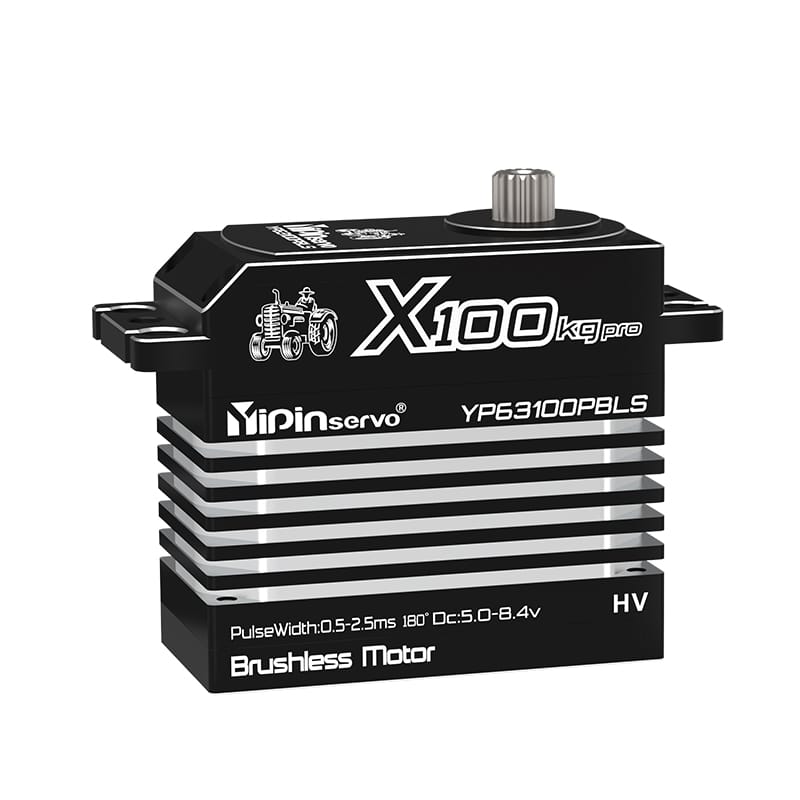

100kg Brushless Servo, High Torque For 1/6 Trucks & Crawling
Product Basic Information
The 100kg Brushless Servo is engineered for high-torque applications, delivering exceptional performance for 1/6 scale trucks and crawling RC vehicles. With a powerful 100kg.cm of torque and advanced brushless motor technology, this servo ensures smooth, precise control even in the toughest off-road conditions. Built to endure the demands of crawling, rock crawling, and other rugged RC truck activities, this high-torque servo is the perfect addition for RC enthusiasts who require reliability and performance in extreme environments.
- Model: 100kg Brushless Servo, High Torque
- Torque: 100kg.cm
- Voltage: 7.4V – 8.4V (high voltage operation)
- Motor Type: Brushless Motor
- Gear Material: High-strength metal gears
- Application: Designed for 1/6 scale trucks and crawling RC vehicles
- Size: Standard size for 1/6 scale trucks and crawling RC vehicles
- Bearing: Dual ball bearings for smooth and precise control
Selling Points
- High Torque for Crawling: With 100kg.cm of torque, this servo provides powerful control for 1/6 scale trucks and crawling RC vehicles, ensuring it can handle rough terrains, steep inclines, and challenging obstacles.
- Brushless Motor Efficiency: Equipped with a brushless motor, this servo offers longer lifespan, improved efficiency, and reduced maintenance compared to traditional brushed motors.
- Durability and Strength: The high-strength metal gears ensure that the servo can withstand the tough conditions often encountered in off-road crawling, providing both reliability and performance.
- High Voltage Capability: Supports operation between 7.4V and 8.4V, ensuring high power output for better control, speed, and efficiency during crawling and off-road tasks.
- Smooth and Fast Response: Dual ball bearings help minimize friction, providing quick, accurate control for smoother operation, even in high-torque applications.
Advantages
- Exceptional Torque for Heavy-Duty Crawling: The 100kg Brushless Servo provides 100kg.cm of torque, making it ideal for RC trucks and crawling vehicles that need to navigate through rugged terrains and obstacles with power and precision.
- Brushless Motor for Efficiency: The brushless motor ensures greater durability and efficiency, providing longer usage without the need for frequent maintenance, making it ideal for off-road and crawling applications.
- Durable Metal Gears: The robust metal gear construction ensures that the servo can withstand heavy loads and harsh conditions, providing smooth operation in even the toughest environments.
- Precise Control and Speed: Dual ball bearings improve the responsiveness and smoothness of the servo, making it perfect for precise steering and quick maneuvers in crawling RC vehicles.
- Versatile for Off-Road and Crawling: Designed for RC trucks and crawling vehicles, this servo is versatile enough to handle diverse terrains and extreme challenges.
Application Fields
- 1/6 Scale Trucks: The perfect fit for large-scale RC trucks, offering powerful and reliable control for both on-road and off-road use, including navigating challenging terrains.
- Crawling RC Vehicles: Ideal for crawling RC vehicles that require high torque for climbing obstacles, rock crawling, and navigating uneven surfaces.
- Off-Road Adventures: Built for off-road RC vehicles that need durability, high torque, and precision control for exploring difficult terrains, mud, and rocks.
- Rock Crawling: Provides superior control for rock crawlers, enabling slow and steady movement over rough, rocky paths without compromising power or precision.
- Heavy-Duty RC Vehicles: Perfect for heavy-duty RC trucks that require a high-torque, reliable servo to handle extreme conditions and perform at top efficiency.
Advantages Comparison
| Feature | 100kg Brushless Servo | Standard RC Servo |
|---|---|---|
| Torque | 100kg.cm | 20-30kg.cm |
| Motor Type | Brushless Motor | Brushed Motor |
| Voltage | 7.4V – 8.4V | 4.8V – 6.0V |
| Gear Type | Metal Gear | Plastic Gear |
| Bearing | Dual Ball Bearings | Standard Bushings |
| Speed | Fast and precise | Slower response |
| Durability | High durability, metal gears | Moderate durability |
Usage Instructions
- Pre-Installation Preparation:
- Check that the 100kg Brushless Servo is compatible with your 1/6 scale truck or crawling RC vehicle, considering the size, voltage, and torque requirements.
- Ensure your receiver and ESC (Electronic Speed Controller) are capable of handling the 7.4V to 8.4V voltage range for optimal performance.
- Installation Steps:
- Install the servo in the designated mounting position within your 1/6 scale truck or crawling RC vehicle.
- Connect the servo’s cables to the receiver and ESC, ensuring all connections are secure and correct.
- Attach the servo horn to the servo’s output shaft, making sure it is firmly in place for reliable operation.
- Operation:
- Power up your RC vehicle and verify the servo’s responsiveness, adjusting settings as needed for smooth control.
- Test the servo under various conditions such as crawling over obstacles or driving through challenging terrains to confirm torque, speed, and precision.
- Safety Considerations:
- Avoid exceeding the servo’s torque rating to prevent damage to the gear system.
- Inspect the servo regularly for signs of wear or damage, especially after heavy usage or when operating under demanding conditions.
- Lubricate the servo as necessary to reduce friction and ensure long-term smooth operation.
Quality and After-Sales Service
- Quality Assurance: The 100kg Brushless Servo undergoes extensive quality testing to ensure optimal performance and reliability in off-road, crawling, and heavy-duty applications.
- After-Sales Support: Our dedicated support team is available for any installation or operational questions, providing expert advice to ensure your system runs smoothly.
- Warranty: The servo comes with a 1-year warranty, covering defects or functional issues that arise under normal usage conditions.
- Long-Term Service: We offer continuous after-sales support to maintain your servo’s performance over its lifespan.
