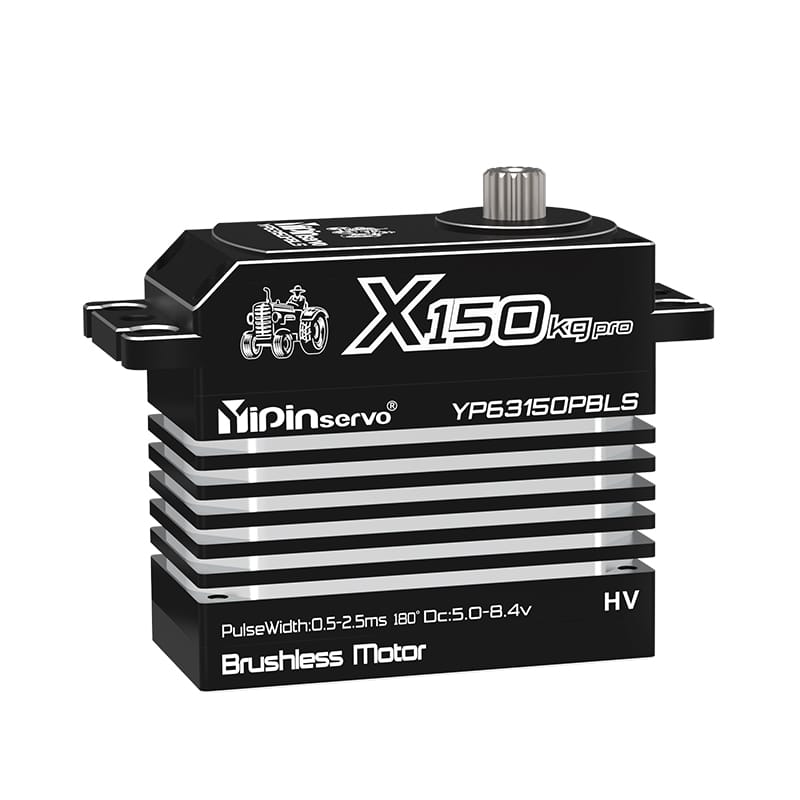

YIPINservo 150kg Servo PWM digital Servos:
High torque digital servo shell using aviation aluminum alloy CNC precision manufacturing, aluminum CNC shell metal gears large high torque steel precision gears, brushless motor, high sensitivity, compact body, 12V high voltage circuitry, waterproof and dustproof function, can be slow to start and blocking the protection function; support for free computer parameter adjustment (need to additionally purchase a USB programming card to regulate the parameters), support for free to adjust the pulse width angle.Used in 1/6 of the remote control toy cars, model airplanes, model ships, robotics industry.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.16sec/60° |
| 7.4V ≤ 0.15sec/60° | |
| 8.4V ≤ 0.14sec/60° | |
| Max. Torque* | 6.0V ≥ 130kgf.cm |
| 7.4V ≥ 150kgf.cm | |
| 8.4V ≥ 170kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2 us |
| Sizes | 65x30x58mm |
| Weight | 210g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
150kg Brushless Servo For 1/6 RC Cars and Robotics Industry
Product Basic Information
The 150kg Brushless Servo is engineered to provide exceptional performance in demanding applications, offering powerful torque and precise control. With an impressive 150kg.cm of torque and advanced brushless motor technology, this servo is perfect for both 1/6 scale RC cars and high-precision robotics systems. Designed to handle heavy-duty loads with ease, it delivers superior efficiency, speed, and durability, making it the ideal choice for serious RC enthusiasts and robotics professionals alike.
- Model: 150kg Brushless Servo
- Torque: 150kg.cm
- Voltage: 7.4V – 8.4V (high voltage operation)
- Motor Type: Brushless Motor
- Gear Material: High-strength metal gears
- Application: Suitable for 1/6 scale RC cars and advanced robotics applications
- Size: Standard size for 1/6 scale RC cars, compatible with robotic systems
- Bearing: Dual ball bearings for smooth and responsive operation
Selling Points
- Incredible Torque Performance: With an impressive 150kg.cm of torque, this servo provides unparalleled power for controlling large 1/6 RC cars and handling demanding robotic applications.
- Brushless Motor Technology: Equipped with a high-efficiency brushless motor, this servo offers longer lifespan, reduced maintenance, and enhanced performance compared to traditional brushed motors.
- Durable Metal Gears: Built with high-strength metal gears that ensure durability and smooth operation, even under heavy loads and extreme conditions.
- High Voltage Compatibility: Operates efficiently within the 7.4V to 8.4V voltage range, providing the necessary power for both high-speed RC cars and industrial-grade robotics.
- Precision and Speed: Dual ball bearings reduce friction and enhance responsiveness, ensuring smooth, fast, and accurate control for complex tasks.
Advantages
- Massive Torque for Heavy-Duty Control: With 150kg.cm of torque, this servo is designed for the most demanding applications, whether in heavy-duty RC cars or high-precision robotic systems.
- Brushless Efficiency: The brushless motor ensures longer operational life, minimal maintenance, and greater energy efficiency, offering long-term reliability in both RC and robotic uses.
- Durability and Longevity: Constructed with robust metal gears and dual ball bearings, this servo is built to handle the wear and tear of rigorous use, making it suitable for high-performance applications in challenging environments.
- Fast and Precise: The servo provides quick, accurate responses, ideal for rapid control in competitive RC racing or intricate robotic movements.
- Versatile Applications: Whether used in RC cars or industrial robots, this servo is versatile enough to handle a wide range of tasks, from high-speed maneuvers to delicate, precise movements.
Application Fields
- 1/6 Scale RC Cars: Perfect for large-scale RC cars, providing exceptional power and control for high-speed racing, off-roading, and challenging terrain.
- Robotics Industry: Ideal for robotic arms, automation systems, or any robotic application requiring high torque and precision control for tasks such as lifting, moving, or manipulating objects.
- RC Racing: A great choice for competitive RC racing, where high torque and precise control are essential to maintain a competitive edge.
- Industrial Robotics: Suitable for industrial robots requiring high-performance actuators for tasks such as assembly, packaging, and more.
- Heavy-Duty RC Vehicles: Designed for RC vehicles that need to carry heavy loads or perform in extreme environments.
Advantages Comparison
| Feature | 150kg Brushless Servo | Standard RC Servo |
|---|---|---|
| Torque | 150kg.cm | 20-30kg.cm |
| Motor Type | Brushless Motor | Brushed Motor |
| Voltage | 7.4V – 8.4V | 4.8V – 6.0V |
| Gear Type | Metal Gear | Plastic Gear |
| Bearing | Dual Ball Bearings | Standard Bushings |
| Speed | Fast and precise | Slower response |
| Durability | High durability, metal gears | Moderate durability |
Usage Instructions
- Pre-Installation Preparation:
- Verify that the 150kg Brushless Servo is compatible with your 1/6 scale RC car or robotic system, especially in terms of size, voltage, and torque.
- Confirm that your receiver and ESC (Electronic Speed Controller) are capable of supporting the 7.4V to 8.4V voltage range for optimal performance.
- Installation Steps:
- Mount the servo in the designated location within your RC car or robot. Ensure it aligns with the steering or control system.
- Connect the servo’s cables to the receiver and ESC, ensuring that the wiring is correct and secure.
- Attach the servo horn to the output shaft, ensuring a tight and reliable connection for proper movement.
- Operation:
- After installation, power up your system and check the servo’s responsiveness, adjusting settings for smooth control.
- Test the servo under different conditions, such as racing or heavy-duty tasks, to ensure its torque, speed, and accuracy.
- Safety Considerations:
- Avoid overloading the servo by exceeding its rated torque, which could cause mechanical damage.
- Regularly check the servo for signs of wear or overheating, especially during extended use or under high-stress conditions.
- Ensure that all components are functioning properly and that the servo is lubricated to minimize friction.
Quality and After-Sales Service
- Quality Assurance: The 150kg Brushless Servo is rigorously tested to meet high standards of performance, providing exceptional reliability for both RC and robotics applications.
- After-Sales Support: Our customer service team is available to assist with installation, troubleshooting, and operational questions, offering expert guidance for all your needs.
- Warranty: The servo comes with a 1-year warranty, covering manufacturing defects and functional issues under normal use conditions.
- Long-Term Service: We offer ongoing support to ensure your servo continues to perform optimally for years to come.
