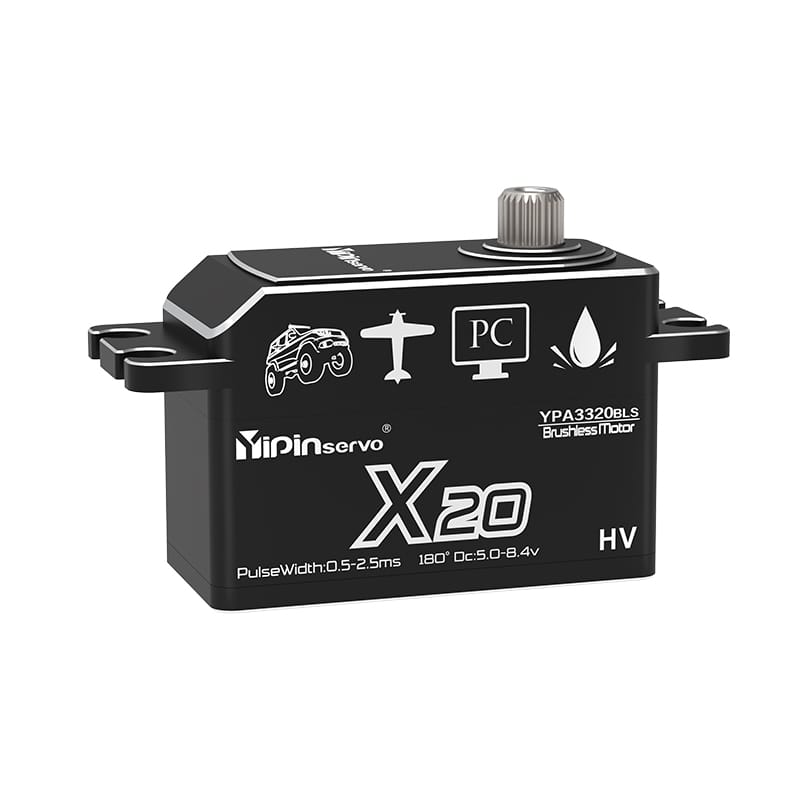

YIPINservo 20kg Servo PWM digital Servos:
Short body short version servo shell all use aviation aluminum alloy CNC precision manufacturing, steel precision gears, brushless motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.06sec/60° |
| 7.4V ≤ 0.05sec/60° | |
| 8.4V ≤ 0.04sec/60° | |
| Max. Torque* | 6.0V ≥ 18kgf.cm |
| 7.4V ≥ 20kgf.cm | |
| 8.4V ≥ 22kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 41x20x28.5mm |
| Weight | 70 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
Title:
20KG Low Profile Brushless Servo – GSC Precision Steering for RC Drift & Crawler Vehicles
Selling Points:
- 20KG High Torque in Low Profile Body: Combines powerful steering control with ultra-slim design for tight RC chassis.
- Brushless Motor with GSC Technology: Smooth, responsive, and ultra-durable under aggressive driving.
- Optimized for RC Drift & Crawlers: Perfect balance of speed and torque for both rapid transitions and obstacle negotiation.
- IP67 Waterproof & Dustproof: Built for rugged terrains, wet trails, and drift tracks.
- Digital Accuracy with Fast Return: Precise center-point memory with minimal latency in angle correction.
Product Advantages:
- Slim Yet Strong: Only 20mm high, fits low-slung drift chassis while offering exceptional torque.
- GSC Gear System: Ultra-low backlash and micro-angle feedback precision, even on slow rock crawling.
- High Voltage Capable (8.4V): Unlocks full torque output when paired with HV receivers or 2S Lipo.
- Lightweight CNC Alloy Case: Provides thermal dissipation and enhanced vibration resistance.
- Flexible Signal Input: Compatible with PWM, with optional upgrade to S.BUS or CAN for advanced control setups.
Application Fields:
- 1/10 & 1/8 RC Drift Cars (Yokomo, MST, etc.)
- RC Crawlers (TRX6, SCX10, Capra)
- Short Course Trucks & RC Buggies
- Mini Off-road Robots
- RC Boat Rudder Control
- Simulation Steering Modules
- Lightweight Robotics with Limited Servo Clearance
Advantages Compared to Standard Servos:
| Feature | 20KG Low Profile GSC Servo | Traditional RC Servo |
|---|---|---|
| Torque | 20KG | 9–15KG |
| Profile Height | 20mm Low Profile | 26–38mm |
| Motor Type | Brushless | Brushed |
| Gear Precision | GSC-Controlled | Basic Digital |
| Waterproof Rating | IP67 | Splash-Resistant |
| Control Input | PWM / Optional CAN / S.BUS | PWM only |
Usage Instructions:
- Operating Voltage: 6.0V–8.4V, best performance on 7.4V+ setups.
- Signal Input: Standard PWM (1000–2000μs); optional UART/S.BUS for custom systems.
- Installation Tips: Use low-profile servo mounts for drift chassis; secure tightly to minimize vibration drift.
- Crawler Calibration: Set endpoints carefully to avoid servo stall under torque.
- Cooling Note: Passive cooling sufficient—no external fan needed due to alloy housing.
Quality & After-Sales Guarantee:
- Track-Tested Durability: Endured 100+ hours of off-road and drift simulation testing.
- 12-Month Warranty: Covers brushless motor, digital control board, and GSC gear system.
- Documentation Provided: 2D drawings, CAD models, signal wiring diagrams, and tuning guides.
- OEM Custom Options: Logo engraving, housing color, wiring length, and protocol firmware adjustment available.
