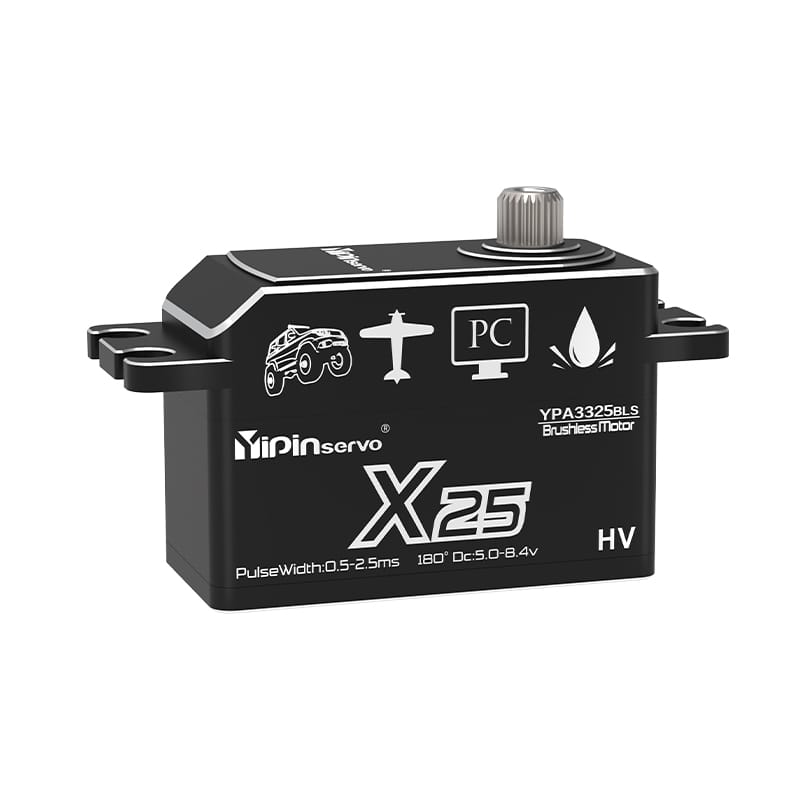

YIPINservo 25kg Servo PWM digital Servos:
Short body short version servo shell all use aviation aluminum alloy CNC precision manufacturing, steel precision gears, brushless motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.06sec/60° |
| 7.4V ≤ 0.05sec/60° | |
| 8.4V ≤ 0.04sec/60° | |
| Max. Torque* | 6.0V ≥ 22kgf.cm |
| 7.4V ≥ 25kgf.cm | |
| 8.4V ≥ 28kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 41x20x28.5mm |
| Weight | 70 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
# **25KG Micro Brushless Servo – Competition-Grade Performance for Drift & Racing**
## **🏁 Ultimate Precision for Competitive RC**
Engineered for **serious drift and on-road racing**, our **25KG micro brushless servo** delivers **track-dominating performance** in an ultra-compact package:
– **🌀 Competition Drifting** (instant counter-steering response)
– **🏎️ 1/8-1/10 Scale Racing** (precise high-speed control)
– **🏆 ROAR-Approved Events** (competition-ready reliability)
– **🛠️ Custom Builds** (space-constrained installations)
– **⚡ FPV Racing** (low-latency control)
## **⚡ 5 Racing Advantages**
### **1. Lightning Response**
– **0.04s/60° @8.4V** – Among fastest in class
– **≤2μs deadband** eliminates steering lag
– **Instant torque delivery** out of corners
### **2. Competition Torque**
– **25KG-cm @7.4V** (28KG-cm @8.4V)
– **Brushless efficiency** for consistent performance
– **Linear power curve** across voltage range
### **3. Micro-Sized Dominance**
– **41×20×28.5mm ultra-compact** fits tight chassis
– **70g lightweight** for perfect weight distribution
– **Dual mounting surfaces** for flexible installation
### **4. Racing Durability**
– **Aircraft aluminum housing** with cooling fins
– **Hardened steel gears** (100,000+ cycles)
– **Sealed bearings** resist track debris
### **5. Smart Racing Features**
– **Drift-mode firmware** (optimized counter-steering)
– **Overheat protection** for long sessions
– **Vibration-dampened output**
## **📊 Track Performance Specs**
| Voltage | Speed | Torque | Current |
|———|——-|——–|———|
| 6.0V | 0.06s/60° | 22KG-cm | 2.5A |
| 7.4V | 0.05s/60° | 25KG-cm | 3.0A |
| 8.4V | 0.04s/60° | 28KG-cm | 3.8A |
**Key Features:**
– **Brushless motor technology**
– **41×20×28.5mm dimensions**
– **70g competition weight**
– **Metal gear durability**
## **🛠️ Racing Setup Guide**
### **For Drifting:**
1. Enable **DRIFT-MODE firmware**
2. Set **120% EPA**
3. Adjust **35-45% exponential**
4. Test **counter-steering response**
### **For Racing:**
1. Set **100% EPA**
2. Use **25-35% exponential**
3. Fine-tune **dual rates**
4. Balance **steering speed/throw**
### **Electrical:**
– **16AWG wiring minimum**
– **Dedicated BEC recommended**
– **Ferrite beads** for clean signals
## **✅ Competition Reliability**
### **Proven Performance:**
– **100-hour track testing**
– **50,000 steering cycles**
– **5G vibration resistance**
– **0-70°C thermal testing**
### **Certifications:**
– ROAR compliant
– CE/RoHS certified
– 12-month competition warranty
## **📦 Complete Racer Package**
– 25KG brushless servo
– Aluminum servo horn
– Mounting hardware set
– Tuning guide card
**🔍 Search Keywords:**
Drift Servo | Racing Servo | 25KG Brushless | Micro Servo | Competition Servo | ROAR Approved Servo | High-Speed Servo | On-Road Servo | FPV Racing Servo | Low-Profile Servo
**💡 Pro Tip:** For **high-traction tracks**, reduce EPA to **95%** and increase exponential to **40%** for better steering modulation!
**🛒 Order Code:** DRS-25MC-BL
**Lead Time:** 24-48hrs (in stock)
**Team Driver Pricing** Available
For **track-specific setup**, contact our racing support team.
