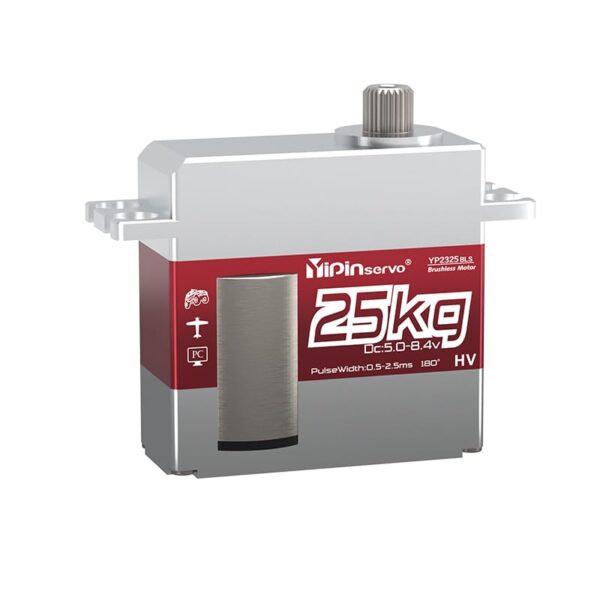

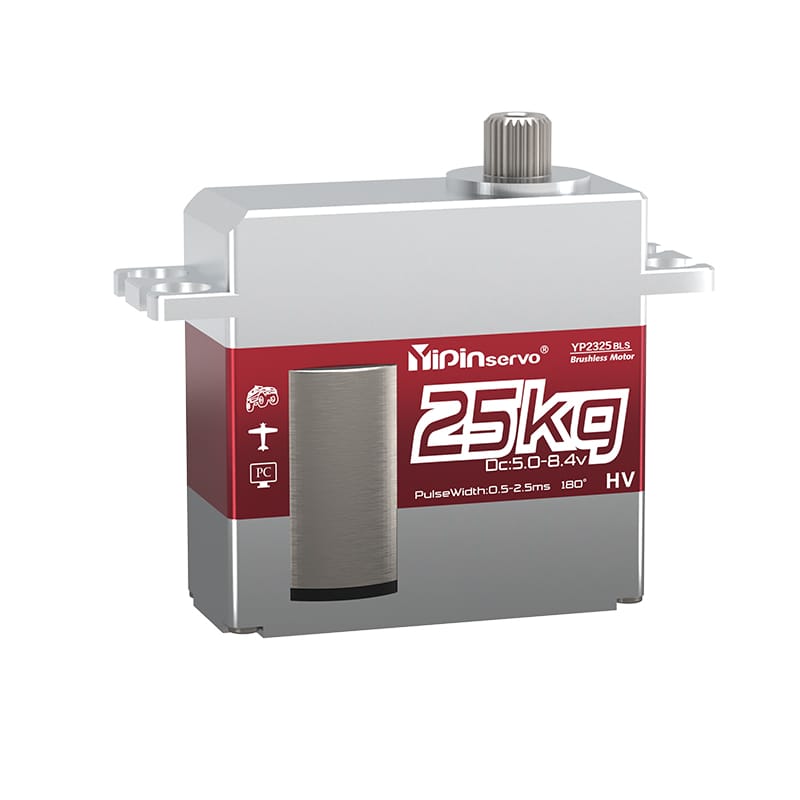

YIPINservo 25kg Servo PWM digital Servos:
This high speed servo is developed for UAV applications and is mainly used for limited space installation of UAVs. Built-in high efficiency brushless motor with 6-8.4V and advanced chip motherboard design to protect your equipment.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.9sec/60° |
| 7.4V ≤ 0.85sec/60° | |
| 8.4V ≤ 0.07sec/60° | |
| Max. Torque* | 6.0V ≥20kgf.cm |
| 7.4V ≥25kgf.cm | |
| 8.4V ≥29kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 35.2x15x32mm |
| Weight | 120g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
Title:
25KG Slim Brushless Servo – GSC Precision Servo for Compact Industrial Automation Systems
Selling Points:
- 25KG Torque in Slim Housing: Powerful and compact—perfect for automated sliding systems, rotary platforms, and narrow mechanical assemblies.
- Brushless Motor System: Delivers ultra-smooth movement, extended life cycle, and low power draw.
- GSC (Gear Set Control) Technology: Ensures consistent output torque with ultra-low backlash and mechanical precision.
- Industrial Slimline Form Factor: 22mm wide housing for tight panel integration, robotic axes, or automation modules.
- Digital Signal Precision: Fast response and highly accurate angular control under variable load.
Product Advantages:
- Compact & Powerful: Delivers strong torque while saving space in your automated design.
- High Durability: Resistant to industrial vibration, continuous-duty operation, and heat cycling.
- Flexible Integration: Compatible with PLCs, Arduino, Jetson, and industrial CANBus networks.
- Low Noise & Stable Feedback: Ideal for high-speed precision equipment or noise-sensitive labs.
- Multiple Mounting Options: Supports both flange and side-screw layouts.
Application Fields:
- Small Industrial Robots
- Conveyor Mechanisms
- Sliding Panels / Automatic Doors
- Positioning Stages
- Valve Control Systems
- Compact AGVs & Sorting Arms
- Precision Automation Test Benches
Advantages Compared to Conventional Industrial Servos:
| Feature | 25KG Slim GSC Brushless Servo | Common Compact Servo |
|---|---|---|
| Torque Output | 25KG High Torque | 10–15KG |
| Profile Width | 22mm Slim | 30–40mm |
| Gear System | GSC Precision | Standard Metal/Plastic |
| Motor Type | Brushless | Brushed or Stepper |
| Signal Modes | PWM / Optional CAN / UART | PWM only |
| Control Accuracy | ±0.05° with Low Drift | ±0.2° Typical |
Usage Instructions:
- Input Voltage: 6.0V–8.4V DC (supports direct 2S Lipo or BEC).
- Signal Types: PWM (1000–2000μs standard), optional CAN or UART on request.
- Wiring Guide: Red = VCC, Black = GND, Yellow = Signal; shield recommended for long runs.
- Mounting Notes: Ideal for aluminum frames or linear axis mounts; apply thread lock on screws.
- Startup Note: Pre-calibrate neutral point via controller to avoid initial overshoot.
Quality & After-Sales Guarantee:
- Industrial-Level Testing: Passed vibration, load stress, and 24/7 endurance simulations.
- 12-Month Quality Warranty: Covers internal electronics, GSC integrity, and brushless motor.
- Documentation Support: CAD, STEP, control libraries, and integration guides provided.
- OEM Custom Services: Custom cable length, flange types, or extended operating temp range upon request.
